December 1962 Radio-Electronics
[Table of Contents]
Wax nostalgic about and learn from the history of early electronics.
See articles from Radio-Electronics,
published 1930-1988. All copyrights hereby acknowledged.
|
Continuing its
long-time monthly "What's Your EQ?" feature where readers submit
electronics-related challenges, Radio-Electronics magazine published
these three in the December 1962 issue. I have to admit to not getting the "120-240 Switchover"
problem due to thinking only "inside the box." I didn't consider that adding
another component to the circuit was permissible. I thought only the presented
wires and component were available for use. Don't you make the same mistake.
"Voltage Quandary" was not as difficult, but took some head scratching. The
"What Am I?" picture escaped my identification. I could see what the part in the
center was, but not what it was mounted to. After seeing the entire item, I have
to say I don't recalling seeing that part mounted on that item. At first I
though it might be a close-up of
R2D2's head, but that dude as a decade and a
half away from birth by Mr. Lucas.
What's Your EQ?
Three puzzlers for the student, theoretician
and practical man. They may look simple, but double-check your answers before you
say you've solved them. If you've got an interesting or unusual answer send it to
us. We are especially interested in service stinkers or engineering stumpers on
actual electronic equipment. We are getting so many letters we can't answer individual
ones, but we'll print the more interesting solutions (the ones the original authors
never thought of). We will pay $10 and up for each one accepted. Write EQ Editor,
Radio-Electronics, 154 West 14th St.,
New York, N. Y.
Answers for this month's puzzlers are on page 63.
120-240 Switchover

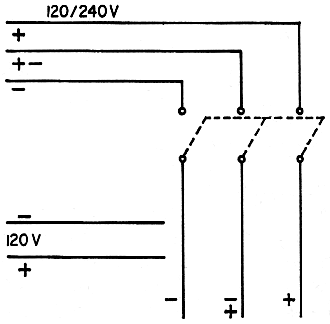

A 120/240-volt dc generator supplies the power for a balanced 3-wire 120-volt
load as shown. A 120-volt generator is to be installed for emergency use. What must
be done, using a knife-switch arrangement, to switch the entire load from the 3-wire
generator to the 2-wire generator without reversing the polarity, and making certain
that one generator cannot inadvertently be connected to the other or that 240 volts
cannot be inadvertently connected to a 120-volt load?
- Z. L. Langly
Voltage Quandary

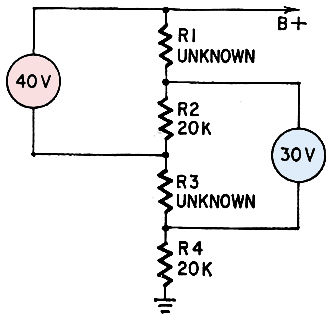

Without writing any equations (by inspection), what is the B-plus voltage?
- Rudolf H. Schorsch
What Am I?

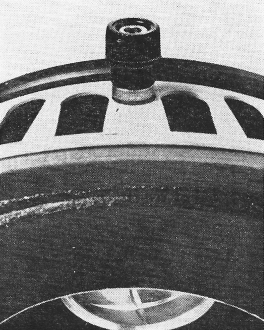

This is a photographic one. Do you recognize it?
- Larry Steckler
