A lot of RF Cafe visitors might not be familiar with some of the electronic waveforms presented in this "Oscilloscope Quiz" by Popular Electronics magazine's ultimate quizmaster, Robert Balin (a big list of his other quizzes is at the bottom of the page). The shapes are recognizable to anyone who has done a lot of design, troubleshooting, testing, or alignments on analog circuits. Electronics repairmen were intimately familiar with these - and much more complex - waveforms. Modulation of the z-axis is especially cool as it varies the intensity of the waveform. I always roll my eyes when, back in the day, a laboratory or medical facility in movies or on TV had an oscilloscope display with a Lissajous pattern writhing on the display. There was another o-scope quiz in 1965.

Oscilloscope Quiz

Oscilloscope Quiz, October 1961 Popular Electronics - RF CafeBy Robert P. Balin

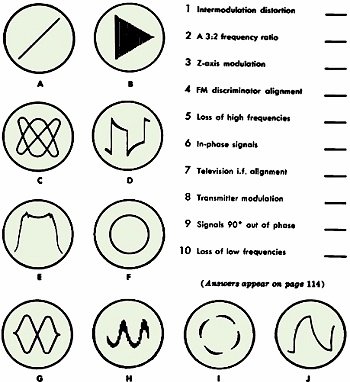

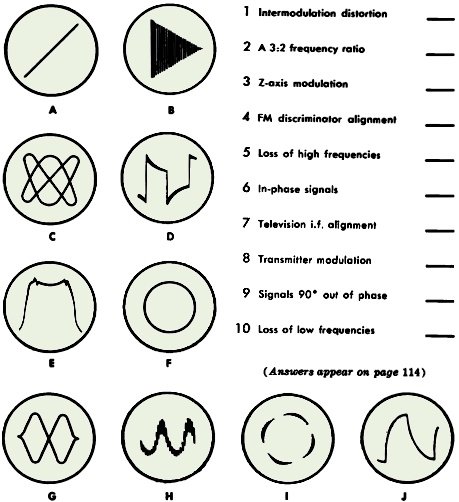

The oscilloscope lets you see what's going on inside a circuit by enabling you to check voltage, phase, frequency, distortion, and other characteristics visually. As you probably know, each of the common applications for this popular device results in a distinctive screen pattern. See if you can match the descriptions listed on the right below with the proper letters (A through J) representing the patterns on the oscilloscope screen.

   1) Intermodulation distortion ___

   2) A 3:2 frequency ratio ___

   3) Z-axis modulation ___

   4) FM discriminator alignment ___

   5) Loss of high frequencies ___

   6) In-phase signals ___

   7) Television i.f. alignment ___

   8) Transmitter modulation ___

   9) Signals 90° out of phase ___

10) Loss of low frequencies ___



See answers below.

Quizzes from vintage electronics magazines such as Popular Electronics, Electronics-World, QST, Radio-Electronics, and Radio News were published over the years - some really simple and others not so simple. Robert P. Balin created most of the quizzes for Popular Electronics. This is a listing of all I have posted thus far.

RF Cafe Quizzes

Vintage Electronics Magazine Quizzes

Vintage Electronics Magazine Quizzes



Quiz Answers

1 - H

2 - C

3 - I

4 - G

5 - J

6 - A

7 - E

8 - B

9 - F

10 - D
