Wax nostalgic about and learn from the history of early electronics. See articles from Popular Electronics, published October 1954 - April 1985. All copyrights are hereby acknowledged.

I scored a pathetic 80% on Robert Balin's Electromagnetic Function Quiz. It appeared in a 1964 issue of Popular Electronics magazine. There are ten drawings of electromagnetic devices and ten related terms for you to match. For the life of me, I could not figure out which drawing represented magnetostriction, which is the process of a material containing a magnetic field changing in physical length. I also wasn't sure what figure A was (hint: think about CRT TVs and monitors), and I wasn't able to confidently do a process of elimination. Oh well, hopefully you'll do better.

Electromagnetic Function Quiz

Electromagnetic Function Quiz, June 1964 Popular Electronics - RF CafeBy Robert P. Balin

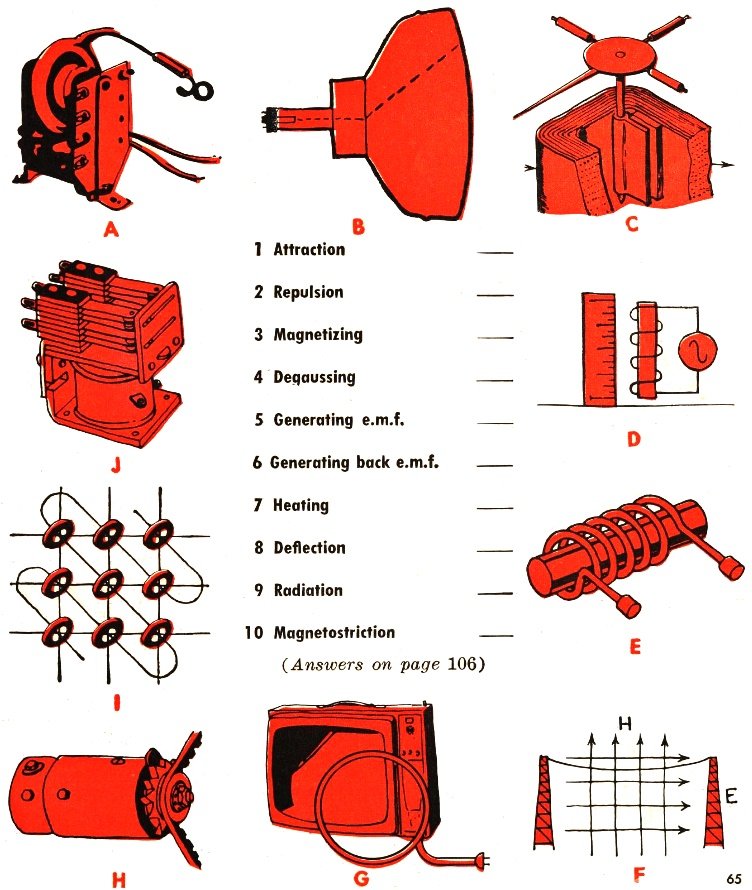

Since 1820, when Oersted discovered the magnetic field around a current-carrying conductor, electromagnetism has found many uses in electronics. Can you match the functions of electromagnetism listed below (1-10) with the drawings of the corresponding devices (A-J)?

See answers at bottom of page.

Quizzes from vintage electronics magazines such as Popular Electronics, Electronics-World, QST, Radio-Electronics, and Radio News were published over the years - some really simple and others not so simple. Robert P. Balin created most of the quizzes for Popular Electronics. This is a listing of all I have posted thus far.

RF Cafe Quizzes

Vintage Electronics Magazine Quizzes

Vintage Electronics Magazine Quizzes





Electromagnetic Function Quiz Answers

1 - J   A relay employs the attractive force of electromagnetism to pull in its armature and thereby change the position of the contacts.

2 - C   In a radial-vane meter movement, two iron vanes positioned like the covers of a book are magnetized in the same way by the surrounding coil. The force of repulsion produced between them then causes the pivoted vane carrying the needle to be deflected.

3 - I   The toroidal cores in a memory plane are fully magnetized in a clockwise or counterclockwise direction by the coincidence of currents in the wires which are threaded through them.

4 - G   A degaussing coil energized by 60-cycle a.c. is used to remove unwanted magnetized areas on a color kinescope. The coil is held momentarily in front of the tube, then slowly backed away.

5 - H   An electric generator produces e.m.f. when its rotating armature windings cut the stationary magnetic field produced by the field windings.

6 - A   A flyback transformer in a television set creates a large back e.m.f. when the magnetic field around it is permitted to collapse suddenly. The amount of back e.m.f. produced is proportional to the rate of change of magnetic flux.

7 - E   An electromagnetic field alternating at r.f. frequencies produces eddy currents which heat up the work piece enclosed by an induction coil.

8 - B   The deflection yoke on a kinescope contains horizontal and vertical electromagnetic deflection coils which bend the electron stream on its way to the screen.

9 - F   Radio waves consist of electric and magnetic fields, each alternately producing the other as the wave travels through space. The magnetic field is positioned vertically in a horizontally polarized wave.

10 - D   When metals such as nickel, iron, or cobalt are magnetized, they undergo a change in length. At ultrasonic frequencies the effect is useful for cleaning and as a transducer for sonar.
