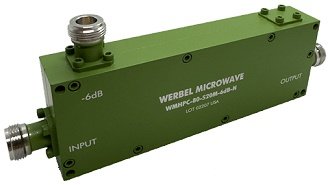

Werbel Microwave WMHPC-80-520M-6dB-N High Power Directional Coupler for 80-520 MHz.
January 13, 2026 - Werbel Microwave began as a consulting firm, specializing in RF components design, with the ability to rapidly spin low volume prototypes, and has quickly grown into a major designer and manufacturer with volume production capacities. The WMHPC-80-520M-6dB-N is a high-power coupler that operates over the 80 to 520 MHz band, covering FM radio, upper VHF and lower UHF applications. Conservatively rated for 100 watts CW. Useful for amplification and signal distribution applications including radio and television broadcasting, public safety and emergency broadcasting and distributed antenna systems. There exists a roll down of 2 dB at the low frequency, making the nominal coupling value 8 dB within the FM radio band. Mainline loss 1.2 dB typical which includes the loss due to coupling. Typical return loss 24.9 dB. Typical directivity 24.5 dB. Assembled and tested in USA. "No Worries with Werbel!"
Purchase the WMHPC-80-520M-6dB-N directly via our distributor,
Hasco Components.
WMHPC-80-520M-6dB-N datasheet here.
About Werbel Microwave
In-House Manufacturing Capability
Since 2014, Werbel Microwave has designed and
produced high performance radio frequency components for military, commercial, test
and measurement applications.
Werbel Microwave welcomes customers to submit their customized RF requirements for quotation. Werbel Microwave also welcomes distributors and resellers.
Orders placed online typically ship within 24 hours.
We have expanded in-house engineering capabilities to support and maintain product design with minimal end-of-life risk.
Contact:
Ernest T. Werbel, Jr.
President / Chief Engineer
Werbel Microwave LLC
628 NJ-10, Suite 14
Whippany, NJ, 07981
Tel: (973) 515-3001
Fax:
(973) 515-3004
Cell: (973) 900-2480
E-Mail: ernest@werbelmicrowave.com
WWeb: werbelmicrowave.com
