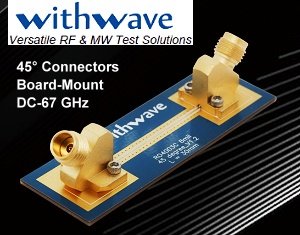

Withwave Board-Mount 45° Board-Mount Connectors (DC to 67
GHz)
June 16, 2025 - Withwave
is a leading designer and developer of a broad range of RF, microwave, and
millimeter-wave test solutions and subsystems with a focus on electromagnetic
field analysis and signal processing. Withwave's 45 degree connectors are
specifically designed for easy installation in tight spaces, providing a
reliable 45° connection with a solderless contact to the PCB surface on
test and measurement boards. These connectors deliver outstanding electrical
transition performance up to 67 GHz while also significantly reducing
installation time by eliminating the need for soldering.
Features:
Freq: DC to 26.5 GHz
Reliable soldering on SMT process
Various Board Clerance: 0.6, 0.8, 1.0, 1.1, 1.2, 1.5, 1.7, 2.1, 2.3 mm
Design Assistance:
3D Model for Mechanical Layout (STEP file)
ANSYS HFSS models(version 17.0 or newer) for 3D EM Simulation
Application:
RFIC Chip set evaluation board
High data rate ASIC and SoC evaluation module test
Substrate Characterization
A short Withwave Product
Presentation video has been produced and posted on YouTube which provides quick
overview of their offerings. As seen in the thumbnail screenshots, it shows real
examples of product lines rather than just CAD drawings. Other videos can be viewed
on Withwave's YouTube
channel.
About Withwave
Withwave is a leading designer, developer of a broad range of RF & MW Test
Solutions and subsystems with a focus on Electromagnetic field analysis and RF &
Microwave Signal processing.
Withwave's extensive product portfolio serves four primary target markets: Wireless
communications, Test & Instrumentation, Automated Test Equipment, Network Systems.
Applications for our products in these target markets include cellular phones
and base stations, data networking, Semiconductor and telecommunications equipment
and factory automation.
Withwave maintains its competitiveness by continuously innovating products and
services in an environmentally beneficial and sustainable manner. We add new technologies
and abilities to our portfolio of competences to ensure our long-term success.
Contact Info
Richard Song Withwave 329, Saeun-ro, Giheung-gu, Yongin-si Gyeonggi-do,
17078, South Korea Website: https://www.with-wave.com E-mail :
bwsong@with-wave.com Mobile Phone : +82-10-9781-3019 Direct Phone : +82-70-7118-0705
