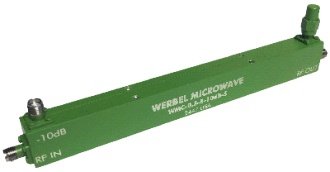

Werbel Microwave Directional Coupler for 300 MHz to 8 GHz

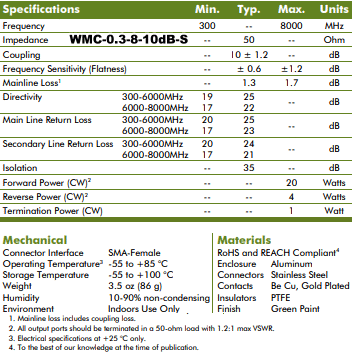

June 3, 2025 - Werbel Microwave's Model WMC-0.3-8-10dB-S is a directional coupler that covers 300 MHz to 8 GHz with broadband flat coupling response, high directivity, and excellent return loss performance. Frequency sensitivity is ±0.6 dB typical. High directivity of 25 dB typical. Mainline insertion loss of 1.3 dB typical includes loss due to coupling factor. Return loss 23 dB typical. Aluminum enclosure measures 6.00 x 0.73 x 0.50 inches with threaded mounting holes. SMA Female connectors. The device is RoHS compliant but may be special ordered with Lead solder to support military applications.
About Werbel Microwave
In-House Manufacturing Capability
Since 2014, Werbel Microwave has designed and
produced high performance radio frequency components for military, commercial, test
and measurement applications.
Werbel Microwave welcomes customers to submit their customized RF requirements for quotation. Werbel Microwave also welcomes distributors and resellers.
Orders placed online typically ship within 24 hours.
We have expanded in-house engineering capabilities to support and maintain product design with minimal end-of-life risk.
Contact:
Ernest T. Werbel, Jr.
President / Chief Engineer
Werbel Microwave LLC
628 NJ-10, Suite 14
Whippany, NJ, 07981
Tel: (973) 515-3001
Fax:
(973) 515-3004
Cell: (973) 900-2480
E-Mail: ernest@werbelmicrowave.com
WWeb: werbelmicrowave.com
