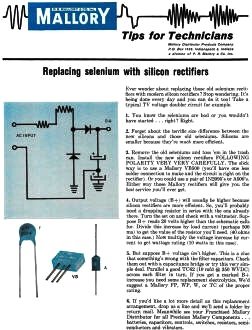

Ever wonder about replacing those old selenium rectifiers with modern silicon rectifiers? Stop wondering. It's being done every day and you can do it too! Take a typical TV voltage doubler circuit for example.

1. You know the seleniums are bad or you wouldn't have started ... right? Right.

2. Forget about the terrific size difference between the new silicons and those old seleniums. Silicons are smaller because they're much more efficient.

3. Remove the old seleniums and toss 'em in the trash can. Install the new silicon rectifiers following polarity very very carefully. The slick way is to use a Mallory VB500 (you'll have one less solder connection to make and the circuit is right on the rectifier). Or you could use a pair of 1N2095's or A500's. Either way those Mallory rectifiers will give you the best service you'll ever get.

4. Output voltage (B+) will usually be higher because silicon rectifiers are more efficient. So, you'll probably need a dropping resistor in series with the one already there. Turn the set on and check with a voltmeter. Suppose B+ reads 20 volts higher than the schematic calls for. Divide this increase by load current (perhaps 500 ma) to get the value of the resistor you'll need. (40 ohms in this case.) Now multiply the voltage increase by current to get wattage rating (10 watts in this case).

5. But suppose B+ voltage isn't higher. This is a clue that something's wrong with the filter capacitors. Check them out with a capacitance bridge or try this very simple deal. Parallel a good TC62 (10 mfd @ 350 WVDC) across each filter in turn. If you get a marked B+ increase you need some replacement electrolytics. We'd suggest a Mallory FP, WP, W, or TC of the proper rating.

6. If you'd like a lot more detail on this replacement arrangement, drop us a line and we'll send a folder by return mail. Meanwhile see your Franchised Mallory Distributor for all Precision Mallory Components ... batteries, capacitors, controls, switches, resistors, semi-conductors and vibrators.
