Werbel Microwave 2-Way Power Splitter for 20 to 530 MHz

Press Release Archives:

2026 | 2025

Content is copyright of company represented. Page format, custom text and images are RF Cafe copyright - do not distribute. Note: Posting of press releases costs $100 each for non-advertisers.

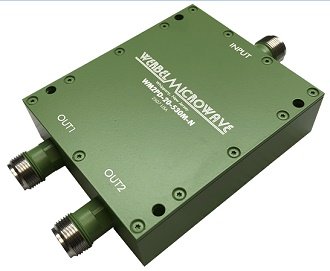

Werbel Microwave2-Way Power Splitter for 20 to 530 MHz Specifications - RF Cafe Website

Model WM2PD-20-530M-N is a 2-way splitter and combiner that covers 20 MHz to 530 MHz

May 27, 2025 - Werbel Microwave's Model WM2PD-20-530M-N is a 2-way splitter and combiner that covers 20 MHz to 530 MHz, HF, VHF and low UHF. It handles 50 watts input power as a splitter or 5 watts per port as a combiner. Note that because of the transformer-based design it does not pass DC to the output. Made in USA with lead free solder, but 63/37 is available on special request for military customers. Highly detailed datasheet includes plots for variation over multiple production devices, and over temperature.

Additional Information

Weight: 8 oz.
Dimensions: 2.25 × 1.96 × 0.75 in
Packaging: Individual
Part Status: Active
Package/Enclosure: Connectorized Module
RoHS Status: ROHS3 Compliant
Moisture Sensitivity Level (MSL): Not Applicable
REACH Status: REACH Unaffected
ECCN: EAR99
HTSUS: 8548.00.0000

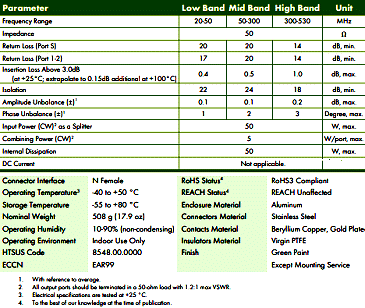

Werbel Microwave WM2PD-20-530M-N Specifications - RF Cafe Website

About Werbel Microwave

Werbel Microwave Manufacturing Capabilities - RF Cafe Website

In-House Manufacturing Capability

Werbel Microwave Made in USA - RF Cafe Website Since 2014, Werbel Microwave has designed and produced high performance radio frequency components for military, commercial, test and measurement applications.

Werbel Microwave welcomes customers to submit their customized RF requirements for quotation. Werbel Microwave also welcomes distributors and resellers.

Orders placed online typically ship within 24 hours.

We have expanded in-house engineering capabilities to support and maintain product design with minimal end-of-life risk.

Contact:

Ernest T. Werbel, Jr.
President / Chief Engineer
Werbel Microwave LLC
628 NJ-10, Suite 14
Whippany, NJ, 07981
Tel: (973) 515-3001
Fax: (973) 515-3004
Cell: (973) 900-2480

E-Mail: ernest@werbelmicrowave.com

WWeb: werbelmicrowave.com
