Exodus AMP20141, 0.4–1.0 GHz, 4 kW Pulse SSPA
Press Release Archives:
2026 | 2025 |
2024 |
2023
|
2022 |
2021
Content is copyright of company represented. Page format, custom text and images are RF Cafe copyright - do not distribute. Note: Posting of press releases costs $100 each for non-advertisers.
400-1000 MHz, 4 kW, SSPA Exodus Model AMP20141.

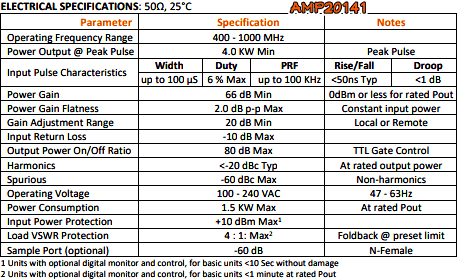

March 3, 2025 (Las Vegas, Nevada) - Exodus Advanced Communications, is a multinational RF communication equipment and engineering service company serving both commercial and government entities and their affiliates worldwide. Exodus' model AMP20141 Pulse SSPA is designed for pulse, EMC/EMI Mil-Std 461 and pulse radar applications. Provides superb pulse fidelity up to 100 μsec pulse widths. Duty cycles to 6% with a minimum 66 dB gain. Available monitoring parameters for forward / reflected power in watts and dBm, VSWR, voltage, current, temperature sensing for outstanding reliability and ruggedness in a compact 10U chassis.
Features Include
- Small form factor rack-mounted system
- Class AB linear
- Advanced technology design
- Instantaneous UHF-Band Linear high peak pulse applications
- Designed for EMI/RFI, lab, HIRF/Pulse Radar applications
- Built-in protection circuits with extensive monitoring
- Local LCD & remote flexible interfaces
- High efficiency with unprecedented reliability and ruggedness
- Legacy P/N: AMP2123P-4KW
About Exodus Advanced Communications
Exodus Advanced Communications is a multinational RF communication equipment and engineering service company serving both commercial and government entities and their affiliates worldwide.
Headquartered in Las Vegas, Nevada, the company utilizes its global network of resources to effectively serve customer requirements.
As a unique original equipment manufacturer of power amplifiers ranging from 500 kHz to 51 GHz with various output power levels and noise figure ranges, we fully support custom designs and manufacturing requirements for both small and large volume levels. We bring decades of combined experience in the RF field for numerous applications including military jamming, communications, radar, EMI/EMC and various commercial projects with all designing and manufacturing of our HPA, MPA, and LNA products in-house.
With our in-house engineering capabilities and fully equipped manufacturing facilities, Exodus Advanced Communications is committed to provide the best in RF products with industry leading quality and lead time.
Contact Info
Mike Yantz
Exodus Advanced Communications
3674 E. Sunset Road, Suite 100
Las Vegas, Nevada 89120 USA
Tel : 1-702-534-6564
E-Mail: sales@exoduscomm.com
Web: www.exoduscomm.com
