Exodus AMP20084, 80-1000 MHz, 750 Watt SSHPA

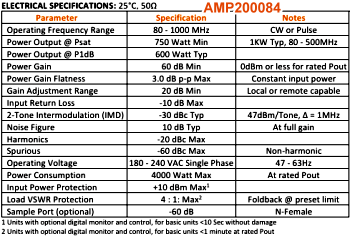

May 30, 2025 (Las Vegas, Nevada) - Exodus Advanced Communications, is a multinational RF communication equipment and engineering service company serving both commercial and government entities and their affiliates worldwide. Exodus' model AMP20084 solid state power amplifier operates from 80-1000 MHz with >750 W output. The unit produces >1000 W nominal power with >600 W P1dB. The minimum gain is 60 dB with excellent flatness. Included are amplifier monitoring parameters for Forward/Reflected power, VSWR, as well as voltage, current & temperature sensing for optimum reliability & ruggedness. Nominal weight is <40 kg, and dimensions are 19"W x 27"L x 8.75"H.
Features Include
- Designed for EMI/RFI, lab, CW/Pulse and all communication applications
- Small form factor, rack mounted system
- Class A/AB Linear design
- High power advanced technology devices Instantaneous ultra-wide bandwidth
- Built-in protection circuits, with extensive monitoring
- Local LCD & remote flexible interfaces
- High efficiency, with unprecedented reliability and ruggedness
- Legacy PN: AMP2071A-LC
About Exodus Advanced Communications
Exodus Advanced Communications is a multinational RF communication equipment and engineering service company serving both commercial and government entities and their affiliates worldwide.
Headquartered in Las Vegas, Nevada, the company utilizes its global network of resources to effectively serve customer requirements.
As a unique original equipment manufacturer of power amplifiers ranging from 500 kHz to 51 GHz with various output power levels and noise figure ranges, we fully support custom designs and manufacturing requirements for both small and large volume levels. We bring decades of combined experience in the RF field for numerous applications including military jamming, communications, radar, EMI/EMC and various commercial projects with all designing and manufacturing of our HPA, MPA, and LNA products in-house.
With our in-house engineering capabilities and fully equipped manufacturing facilities, Exodus Advanced Communications is committed to provide the best in RF products with industry leading quality and lead time.
Contact Info
Mike Yantz
Exodus Advanced Communications
3674 E. Sunset Road, Suite 100
Las Vegas, Nevada 89120 USA
Tel : 1-702-534-6564
E-Mail: sales@exoduscomm.com
Web: www.exoduscomm.com
