"Air-Track" System of Blind Landing



NOVEMBER 18, 1938



I. Summary. II. Introduction. III. Formation and Organization of the Institute. IV. The Work of the Institute.

A. Development and Performance of Air-Track.

B. The Work of the Broadcasting Division,

C. Other Developments of the Institute. V. Conclusion. VI . Bibliography.



The Washington Institute of Technology wa3 formed in 1933 to develop an instrument landing system, already well begun at the Bureau of Standards. It has its offices located in Washington, D. C. and its experimental laboratory at College Park, Maryland. Closely associated with it and also located at College Park, Maryland is its two "manufacturing associates" Air-Track and Scientific Concrete Service Corporation.

The Institute's chief objective is to test and develop more fully the present Air-Track equipment. The Air-Track instrument landing system employs three elements, the runway localizer for guidance in the horizontal plane, the glide path for guidance in the vertical plane, and the marker beacon to serve as a warning to the pilot of the proximity of the airport. All the ground equipment except the marker beacon is located in an automobile trailer which may be moved to other runways as weather conditions dictate. Also located in the trailer is an automatic monitoring device which insures the operation of the transmitters within closely prescribed limits. In the plane the pilot has a visual cross-pointer instrument on the instrument panel, which enables him to follow a curved path down to the runway and a safe landing in any kind of weather. The Broadcasting Division of the Institute renders valuable service to radio stations and radio engineers. This service includes allocation engineering, site surveys, coverage surveys, directional antennae design, construction of antennae tuning and phasing equipment, and a frequency monitoring service.

In addition to these major interests, the Washington Institute of Technology holds the patent rights on many other devices which have been


developed in connection with their regular work.

Since its inception in 1933, the Institute has steadily grown in size, and with the probable adoption of an instrument landing system at all airports, it is safe to assume that it will enjoy a continued growth and expansion.



The Washington Institute of Technology is a corporation which was formed for the purpose of experimentation and further development of an instrument landing system previously conceived by certain scientists at the Bureau of Standards. The progress accomplished at the Bureau of Standards ha3 teen adequately covered "by a previous thesis entitled "History and Development of the Bureau of Standards' Radio Beacon Experiment Station at College park, Maryland", written by Robert W. Beckham and dated December 18, 1936. It is the purpose of this thesis to set forth the history and development of the Washington Institute of Technology which is, in effect, an account of the subsequent developments along this line. It is for the instrument landing system, known as Air-Track, that the Institute has achieved an international renown.

The offices of the Institute are located at present on the eighth floor of the McLachlen Building, 10th and G Streets, N.W. , Washington, D. C. The laboratory, where all the research and testing is done, is located at College Park, Maryland and is Just south of the College Park Airport in a convenient position for experimentation in airplane instrument landing systems. Associated with the laboratory is a factory for the manufacture of Air-Track equipment and also a laboratory for the purpose of research in the scientific control of concrete ingredients and strength. The last named establishments, however, do not belong to the Washington Institute of Technology proper, but are closely associated with it.

Aside from the above permanent locations, there are field parties which are established in various localities as situations warrant. For example, at the present time a party is located in Pittsburgh because of the installation of Air-Track equipment at the Pittsburgh Airport. The Washington Institute of Technology is centered at College Park, Maryland with offices in Washington, D. C.



As mentioned briefly above, the earlier developments of an airplane instrument landing system were first developed at the Bureau of Standards in Washington, D. C. However, the Economy Act, passed by Congress in 1933, made it necessary either to discharge the scientists connected with this work or to give them work in which they were not interested. It was at this time that Col. Sidney F. Mashbir organized the Washington Institute of Technology and invited the Bureau of Standards' scientists to join his organization and continue their research where it had been so abruptly terminated at the Bureau,

Thus, the chief objective in forming such a company was for the purpose of research and further development of an instrument landing system. Since that time, the Institute has gained other aims, but still its predominant work is in the testing and further development of Air-Track.

The Washington Institute of Technology is incorporated in the State of Delaware and the controlling interest of stock is held by Col. Sidney F» Mashbir, who is the president of the company. At present the Institute is financially self-supporting due to its income for services rendered to radio stations and radio engineers which will be explained in more detail later. The Institute is subdivided into two main divisions, the Aircraft Radio Division and the Broadcasting Division, each of which has its distinct work to do, although they are very closely connected.

The personnel of the Institute has steadily grown since its inception in 1933. As mentioned above, the president is Col, Sidney F. Mashbir, while the nucleus of the company still comprises the scientists who have left the Bureau of Standards - The following men were all originally connected


with the Bureau. Gomer L. Davies is the Chief of the Aircraft Radio Division and Dr. Frank G. Kearia the Chief of the Broadcasting Division. They were accompanied by engineers Gerald H. Ifintermute, now the senior engineer of the Aircraft Eadio Division, and the late William Or ton and also by the mechanicians Hi chard Greene, senior mechanician, who is at present employed at Pittsburgh, Harold Horsman, and Daniel %brand, Both of whom are employed at College Park, Maryland. From this small group in 1933 the Institute has grown until its staff now numbers over 20 engineers and technicians.

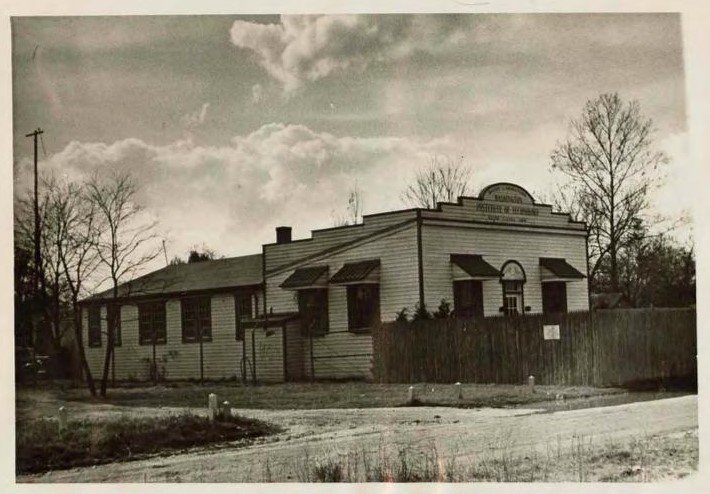

Air-Track Factory at College Park, Maryland (1) - RF Cafe

Air-Track Factory at College Park, Maryland (2) - RF Cafe

Several Views of Air-Track Factory at College Park, Maryland




The Air-Track instrument landing system is a proposed solution of the problem of landing a plane safely when the visibility is very poor. It consists essentially of three distinct transmitters — the runway localizer, the glide path, and the marker "beacons — each of which has its own function to perform. The runway localizer transmitter employs two loop directional antennae placed at an angle to each other. It depends for its success on the fact that a loop antennae sends out its maximum power in the plane of the loop and none at right angles to the loop. If points of equal field intensity be plotted, it is found that the radiation pattern is in the form of a figure eight. When two loop antennae are used in conjunction at an angle to each other, the points of similar field intensity from each loop overlap, giving four paths at right angles to each other along which the radiations from both loops are of equal intensity. One of these paths is directed down the runway and by his instruments the pilot can determine whether he is to the right or left of the runway, since the field intensity from one loop will be greater than that from the other loop if the pilot is off his course. Naturally, it will be necessary that the radiations from the two loops be different in form in order that it will be possible to distinguish between the two and thus determine in which direction the pilot is off the course. Formerly this was accomplished by use of the "interlocking A and K, signals." This merely means that the A ( • — ) is sent out on one loop, while the N ( — •) is sent out on the other. However the signals alternate. In other words, the dash


Note Cross-Pointer Instrument above Instrument Panel - RF Cafe

Note Cross-Pointer Instrument above Instrument Panel

Schematic Diagram Showing:

(1) Boundary Marker Beacon

(2) Control Room

(3) Trailer in Position


of the N would "be sent out on the first loop; followed by the dot of the A on the second loop; followed by the dot of the N on the first loop, and that in turn followed "by the dash of the A on the second loop, and then repeat the cycle. If the pilot was on his course, the signal he received in his phones was a steady Team, which would change to a condition where one signal predominated if he strayed from his course. However, this system proved undesirable and has been replaced in Air-Track equipment by a modulation system, wherein the carrier wave has a frequency of 110 megacycles which is modulated to a frequency of 90 cycles in one loop and 150 cycles in the other loop.

These impulses are separated in the plane by means of a reed-converter. This merely consists of two vibrating reeds, each of them having a natural vibrating frequency coinciding with the modulated frequency from one of the loops. The output from these reeds "buck" each other and actuate a vertical pointer which swings to the right or left as the field intensity changes. Thus, when it is exactly vertical, the pilot is on his course.

This runway localizer beam gives the pilot guidance in the horizontal plane so that he can head directly down the runway. However, he also needs guidance in the vertical plane so that he will land at the right point. This is the function of the glide path transmitter. The points of equal field intensity lie on a curve similar to the one shown in the accompanying figure* Of course an infinite number of such curves exist. This is utilized by tuning the receiver in the plane to the particular curve best adapted to the natural gliding angle of that plane. Also by varying the output of the transmitter these curves can be raised or lowered in order to clear obstacles or flying hazards.

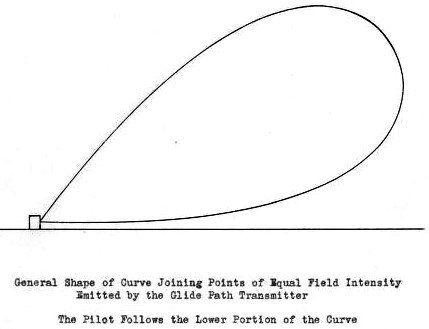

General Shape of Curve Joining Points of Equal Field Intensity Emitted by the Slide Path Transmitter

The Pilot Follows the Lower Portion of the Curve - RF Cafe

The Pilot Follows the Lower Portion of the Curve


Ordinarily there would tie similar curves emitted to the rear of the transmitter and away from the runway. However these are removed "by the use of reflectors thus leaving only the desired curves down the runway.

The output from the receivers actuate a horizontal pointer which goes above or below its neutral position to correspond with the position of the plane above or below its predetermined path. This instrument is so constructed that, if perchance the receiver or transmitter should cease to operate, the pointer will fall below the horizontal, indicating to the pilot that he is below his path and he will climb, thus placing himself out of danger*

By combining the runway localizer and the glide path, the pilot has guidance in both the horizontal and vertical planes. However, it is highly desirable that the pilot should know his approximate position, relative to the field* This is accomplished by placing a marker beacon at the approach end of the runway and also another at a known distance beyond the end of the runway. As the pilot flies through the vertical "curtain" sent up by the marker beacons, be hears a tone in his phones and a light flashes on his instrument panel. This enables him to tell them he is over the field. The marker beacon aerial is permanent in position and is strung close to the ground. Thu3 it interferes in no way with the landing of the plane and is not a flying hazard.

The frequency used on the runway localizer transmitter is 110 megacycles; that of the glide path transmitter is 91 megacycles, and the marker beacons operate on 75 megacycles. There was considerable difficulty encountered in developing the present ultra-high frequency transmitter used for the localizer, however it is much superior to the original type, since it is not as readily affected by weather conditions. Also this system is unique in that all the ground equipment, except the marker beacon, is located in an


Pictorial Diagram of Air-Track Equipment in Operation at Pittsburgh Airport - RF Cafe

Pictorial Diagram of Air-Track Equipment in Operation at Pittsburgh Airport

The first installation for instrument landing of aircraft under regular airline operating conditions, has been completed at Pittsburgh for use by Pennsylvania Central Airlines. Photo shows Air -Track portable transmitting equipment stationed on west end of 5700 ft. runway of Pittsburgh's famous all -paved airport; also alternate positions at ends of other runways — the action of glide path, localizer and marker beacons — and of cross-pointer instrument by which pilot lands.


Marker beacon at edge of field informs pilot when he crosses boundary, by sound in earphones and light flashing on instrument panel

Four course localizer, range 20 miles, actuates vertical needle. One beam projected along center of runway. Pilot knows when right or left of course; obtains position anywhere within 40-mile boundary of field; actuates horizontal needle.

Trailer can easily be disconnected, towed to another position, connected and transmitters placed in operation in a few minutes.


automobile trailer which may lie moved from one runway to another to correspond with the prevailing weather conditions. This makes a single installation serve any number of runways. An added safety device is the automatic monitoring system which is located in the trailer and consists essentially of a receiver which insures that the transmitters shall operate within closely prescribed limits. If not within these limits, the transmitters are shut off and a warning signal is sent to the control tower at the airport, from which the proper adjustments are made.

The equipment in the plane is very simple, consisting merely of a receiver employing a detector circuit and two stages of audio amplification. It is very compact in form and all of the equipment, with the exception of the control box» can be located at any convenient place in the plane. Thus the only part of the equipment which must be in the pilot's cockpit is the control box and the visual cross-pointer instrument on the instrument panel. This use of the visual indicator instead of the older aural method marks a long step forward, inasmuch as it allows the pilot to maintain voice communication with the airport throughout the entire time interval of landing.

The introduction and general use of such an instrument landing system should have a tremendous effect on airline development in the future. First and most important of all, it will promote safety especially in bad weather and decrease materially the number of accidents which occur at airports during the approach and landing operations. In addition, it will facilitate traffic control at airports and make it possible to land more planes in the same amount of time, thus relieving congestion at the more crowded airports. Also it will make possible the establishment and maintenance of regular airline schedules in spite of the weather. This will result in a tremendous increase in the number of passengers to travel by airplane, if they can depend on the printed schedule.

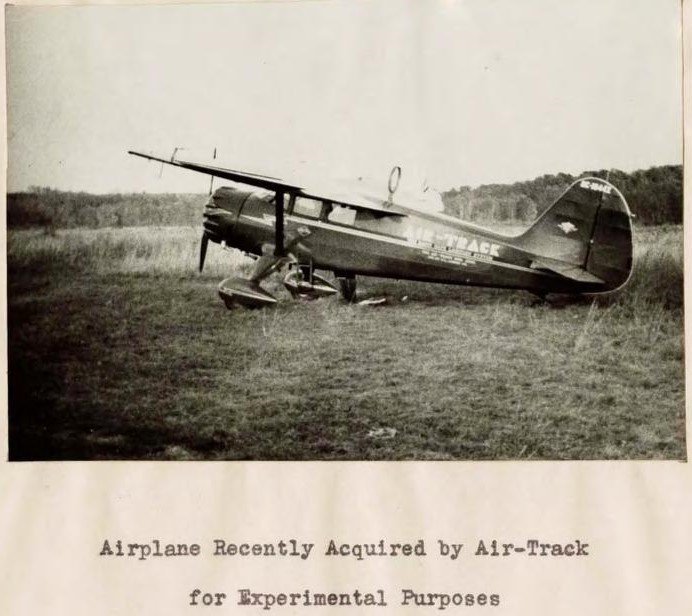

Airplane Recently Acquired "by Air-Track for Experimental Purposes - RF Cafe

Airplane Recently Acquired "by Air-Track for Experimental Purposes


With so many obvious advantages in the use of such a system, it is logical to ask, "Why has it not been adopted and in general use?" There are many reasons for the delay. It is the general belief that its installation will have to come as a Federal aid to airports because of the cost. At pre- sent, the Bureau of Air Commerce has no authority to use its funds for airport improvements but only for airway aids (between airports). Such authorization must come from Congress which introduces considerable question as to its probable time of. adoption. Furthermore, it will be necessary to first agree on a system which is acceptable to all concerned and then to train pilots in its use. All these details require time and must be further developed before adoption.


In addition to the work done by the Washington Institute of Technology in the testing and development of Air-Track equipment, it also renders valuable service to radio stations and radio engineers. These services cover many fields and, while some are routine duties, others require much technical knowledge and foresight. All, however, are very necessary to commercial radio stations.

Under the head of allocation engineering are included all the details and considerations which enter into the allotting of frequency bands to radio stations. This work is concerned mostly with the opening of new stations and the insurance of their proper operation. Also in connection with this work, the Institute conducts site surveys. These surveys are made to determine the effect of buildings, ore deposits, etc. on transmitters, and to determine the most advantageous place at which to locate a permanent radio

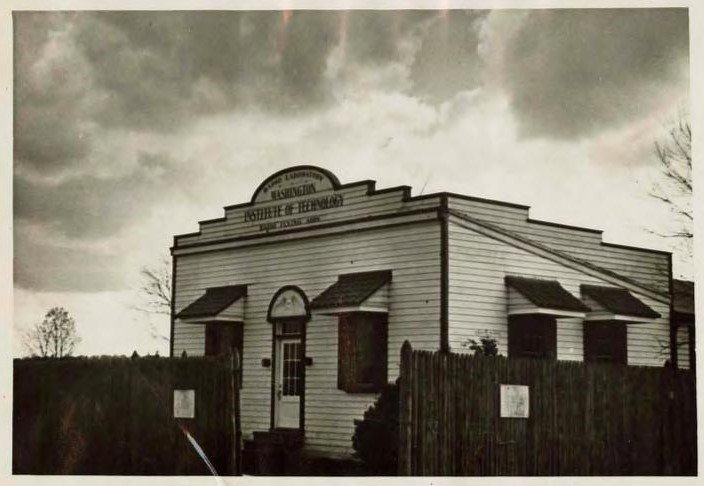

Radio Laboratory of the Washington Institute of Technology (1) - RF Cafe

Radio Laboratory of the Washington Institute of Technology (2) - RF Cafe

The Radio Laboratory of the Washington Institute of Technology at College Park, Maryland


station. In order to do this, portable transmitters are set up at the place in question and the location tested. Such surveys eliminate the guess-work in the location of a station and prevent the construction of an expensive broadcasting station only to find that it is in a poor location.

The Institute also conducts coverage surveys for radio stations already in existence in order to determine the strength of the emanations from the station and the amount of territory which a radio station serves. This has an important commercial aspect since the station can base its charges to commercial advertisers on the number of people which it reaches. This is especially important in metropolitan areas.

In addition, the Institute also is doing important research work in the development of proper designs for directional antennae in order to prevent interference between radio stations. Furthermore, it develops and constructs all manner of antennae tuning and phasing equipment. This construction is done at College Park, Maryland and the equipment is sold to radio stations and radio engineers.

In addition to these services, the Institute conducts a frequency monitoring service consisting of routine tests on operating stations to determine their frequency accurately. The frequency of the station is calibrated against the signal received from the Bureau of Standards by telephone which is accurate to one cycle in ten million cycles over a period of one minute. By comparing the two signals and counting the number of beats, the number of cycles that the frequency being tested is in error may readily be determined. This is done periodically to insure that the station is within the limits prescribed by the Federal Communications Commission and is conducted for the benefit of the radio station. This work is all done on a contract basis and helps materially to make the Institute financially self-supporting.



Although the development of Air-Track and the services rendered to radio stations, as described above, constitute the major part of the work done "by the Washington Institute of Technology, there are several additional developments which are worthy of note. The Washington Institute of Technology holds patent rights on many important developments, largely in the realm of radio* These include several important innovations in the design of directional antennae. Also an improved radio direction finder has been developed largely in connection with its aeronautical experimentation. Another device known as the gun compass has also been perfected. This is a variation of the earth inductor compass and finds its chief application in small boats, since it is not so readily affected by the rocking motion. Another development consists of a low capacitance cable for use in ignition systems of airplanes or automobiles, giving a hotter and larger spark. It has been used for several years in Naval aircraft. These developments are merely a few of the many patents held by the Washington Institute of Technology.

There is one other organization which is closely allied with the Washington Institute of Technology and should be mentioned. It Is known as the Scientific Concrete Service Corporation. Its organization is entirely separate from the Washington Institute of Technology. However, actually, it is closely allied. It holds a position similar to Air-Track. Scientific Concrete Service Corporation has developed a means of accurately controlling the ingredients of a mixture of concrete. By insuring a precision control of these ingredients, especially water, it is possible to effect a saving in cement and also insure more uniform strength in the final concrete. The Corporation also has an establishment at College Park, Maryland. Thus at College


Park, Maryland is located the Washington Institute of Technology laboratory and its two "manufacturing associates", Air-Track and Scientific Concrete Service Corporation.



Until the present time, the Washington Institute of Technology has "been very successful in its developments and has steadily grown in size. It renders valuable aid to radio stations, and if instrument landing systems are installed in all airports, as they probably will be in the future, their services will be in demand because of their previous experience. If the system adopted is Air-Track, the Institute will grow much faster. In the light of the above observations, it is the opinion of the writer that the Washington Institute of Technology will continue to grow in the future, barring unforeseen difficulties of a financial or technical nature.

Before concluding, the writer would like to express his sincere thanks for the courteous aid which was extended to him by members of the Washington Institute of Technology staff, and especially to Dr. Frank G. Kear, Chief of the Broadcasting Division, and Mr. Charles 1. Planck, who have been most obliging in extending the information needed for a thesis of this nature.



"Report on the Status of Instrument Landing Systems"

V f . 3. Jackson, Chief of Radio Development Section, Bureau of Air Commerce, Safety and Planning Division.

"The Washington Institute of Technology Air-Track System of Instrument Landing"

"by Hemy W, Roberts in "Aero Digest", April, 1937.

"Under The Weather "

"Fortune Magazine", June, 1938 Air Commerce Bulletins

#23, Volume I, Pages 5-6 # 8, Volume I, Pages 15 - 16 #20, Volume II, Page 526

Bureau of Standards Research Papers No. 435 and Ho. 581


Dr. Frank 5. Kear, Chief of the Broadcasting Division of the

Washington Institute of Technology Mr. Charles S. Planck, Publicity Manager of the Washington

Institute of Technology
