Innovative Power Products Intros 0 – 1000 MHz, 50 W and 150 W, 90° Couplers

Innovative Power Products (IPP) header

February 3, 2016

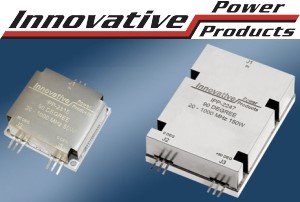

Innovative Power Products Intros 0 – 1000 MHz, 50 W and 150 W, 90° Couplers - RF CafeInnovative Power Products introduces their latest 90 Degree coupler that operates over the full 20 – 1000 MHz. band. Our new Model IPP-2315 handles 50 watts CW and comes in a Drop-In Style package which is only 1.71 x 1.90 x 0.76 inches.

The IPP-2315 will combine two signals up to 50 Watts CW of total output power. This coupler has a remarkable amplitude balance of <± 0.30 dB across the whole band. This design is a 3 port device with an internal Termination capable of handling 20 watts. Insertion Loss is less than 0.80 dB, VSWR is less than 1.35:1 and greater than 16 dB of Isolation.

For higher power 20 – 1000 MHz. applications, the IPP-2315 is perfect when used as an input splitter along with our IPP-2247 as the high power combiner for amplifier modules. The IPP-2247 handles as much as 150 watts CW and has an amplitude balance of < 0.25 across the full band.

Delivery: Stock to 5 weeks ARO. For pricing or additional information, please contact the Sales Department at 631-563-0088, or email us at sales@innovativepp.com.

IPP also offers other 90 Degree Couplers, Baluns, Combiners and Dual Directional Couplers for 20 – 1000 MHz. Band.

  • IPP-2247   90 Degree Coupler, 150 Watt, Drop-In Package
  • IPP-5003   Balun, 100 Watt, SMD
  • IPP-1102   2 Way Combiner, 50 Watt, Drop-In
  • IPP-1103   4 Way Combiner, 200 Watt, Drop-In
  • IPP-1023   2 Way Combiner, 50 Watt, N / N Connectors
  • IPP-1025   2 Way Combiner, 100 Watt, N / N Connectors
  • IPP-1020   4 Way Combiner, 200 Watt, SMA / SMA Connectors
  • IPP-1021   4 Way Combiner, 300 Watt, N / N Connectors
  • IPP-1141   2 Way Combiner, 500 Watt, N / N Connectors
  • IPP-8070   Dual Directional, 150 Watt, 50 dB, SMD
  • IPP-8036   Dual Directional, 300 Watt, 50 dB, SMD
  • IPP-3131   Dual Directional, 200 Watt, 50 dB, SMA / SMA Connectors
  • IPP-3139   Dual Directional, 300 Watt, 50 dB, N / N Connectors
  • IPP-3134   Dual Directional, 500 Watt, 50 dB, N / N Connectors
  • IPP-3130   Dual Directional, 1000 Watt, 50 dB, SC / SMA Connectors

Delivery: 4 – 5 weeks ARO. For pricing or additional information, please contact the Sales Department at 631-563-0088, or email us at sales@innovativepp.com

IPP is a designer and manufacturer for applications in the RF and Microwave industries, and offers a variety of broadband, high power couplers, combiners, RF power resistors and terminations operating up to 12 GHz. Our RF Resistors, Terminations and 90 degree Drop-in Hybrid Couplers are RoHS compliant.

About Innovative Power Products (IPP)

Innovative Power Products' broadband products are used around the world in RF and Microwave applications in military, medical, industrial and consumer markets. Innovative Power Products is quickly becoming a market leader by offering our customers competitive prices, fast delivery worldwide and outstanding customer service. IPP's innovative and reliable products are backed by exceptional Customer Service and Support. We are committed to our customers' success, and we prove it in everything we do. Our Product Services include applications engineering and contract manufacturing.

Contact Info

Innovative Power Products, Inc.
1170-8 Lincoln Avenue
Holbrook, NY 11741
Phone: 631-563-0088
Email: info@innovativepp.com
Web: www.innovativepp.com
