PMI Intros 10-Bit Digitally Controlled Phase Shifter
|
|
March 15, 2013 Press Release

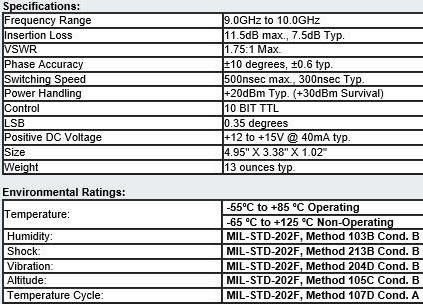

The PS-360-DC-IR-9G10G is a 10-Bit digitally controlled 360 degree phase shifter that operates
from 9.0 to 10.0 GHz. This model offers low insertion loss of 7.5 dB and a phase shift
accuracy of ±0.6 degrees typically. The typical switching speed is 300 nsec and operates
with input power levels up to +20 dBm. This model requires a single voltage supply of +12
to +15 VDC with a current draw of 40 mA. The housing measures 4.95" x 3.38" x 1.02".
Other frequency ranges are available.

http://www.pmi-rf.com/Products/phaseshift-biphasemod/phaseshifters/PS-360-DC-IR-9G10G.htm
[borders/inc-300x250.htm]Quick
Links:
Product Feature
Test Report
About Planar Monolithics Industries
Planar
Monolithics provides its unique products for applications in space, military, communications,
telecommunications, commercial, and consumer electronics systems. Planar Monolithics Industries,
Inc. has been set up to manufacture and market various MIC/MMIC (Microwave Integrated Circuits
and Monolithics Microwave Integrated Circuits) Components, Supercomponents, and Subsystems for
applications in Telecommunications, Terrestrial, Satellite, and Mobile-Radio Communications,
Defense (ECM, ECCM, ESM, Radars, and Electronic Warfare), Cable-TV, Navigation and Marine Electronics,
FAA/DOT-Avionics, Ground Based Systems, and Microwave Landing Systems.
