Z-Communications, Inc. Press Release - March 28, 2011

Z-Comm Introduces CRO2211B-LF Low Phase Noise VCO


Z-Communications, Inc.

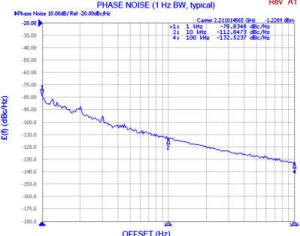

RoHS compliant VCO (Voltage-Controlled Oscillator) model CRO2211B-LF in S-bandSan Diego, CA, March 28, 2011 -- Z-Communications, Inc. announces a new RoHS compliant VCO (Voltage-Controlled Oscillator) model CRO2211B-LF in S-band. The CRO2211B-LF operates at 2184-2238 MHz with a tuning voltage range of 0.5-4.5 Vdc. This VCO features a typical phase noise of -110 dBc/Hz @ 10 KHz offset and a typical tuning sensitivity of 22 MHz/V.

The CRO2211B-LF is designed to deliver a typical output power of 3 dBm at 5 Vdc supply while drawing 22 mA (typical) over the temperature range of -40º to 85º C. This VCO features typical second harmonic suppression of -16 dBc and comes in Z-Comm's standard MINI-16-SM package measuring 0.5 in. x 0.5 in. x 0.22 in. It is available in tape and reel packaging for production requirements. The CRO2211B-LF is also ideal for automated surface mount assembly and reflow.

CRO2211B-LF packageCRO2211B-LF is well suited for fixed wireless applications that require ultra low phase noise performance. Additional specifications for this product can be found on-line at
http://www.zcomm.com/webstore/ProductInfo.aspx?productid=CRO2211B-LF.

For further information on this model or any other product from Z-Communications, Inc. please contact our Applications department via e-mail at applications@zcomm.com or call us at 858-621-2700.

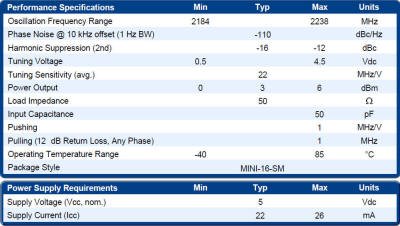

CRO2211B-LF electrical specs



Part Number: CRO2211B-LF
Contact: Z-Communications, Inc.
San Diego, CA
Tel: 858-621-2700
Fax: 858-621-2722
Email Technical Support – applications@zcomm.com
Email Sales: sales@zcomm.com
URL: http://www.zcomm.com


For further information on this model or any other product from Z-Communications, Inc. please contact our Applications department via e-mail at applications@zcomm.com or call us at 858-621-2700.

RoHS logoAbout Z-Communications, Inc.

Z-Communications, Inc. is a pioneer in developing Voltage Controlled Oscillators (VCO) and Phase Locked Loop (PLL) synthesizers for the commercial marketplace since 1987. With devoted customers, Z-Communications, Inc. serves wireless and communication industries by providing the most effective and competitively priced RF/microwave components, as well as custom component designed to meet customer specific needs. Our sophisticated automated manufacturing facility, located in the US at our headquarters in San Diego guarantees a high level of repeatability, reproducibility and control. For more information please visit us at www.zcomm.com or contact our sales department.



















Posted  3/28/2011
