Southwest Antennas Releases New Rugged Tri-Band Omni-Directional Antennas for L, S, and C Band Communication

Press Releases on RF Cafe

Content is the copyright of the company represented, but the page format is my copyright and cannot be distributed to other media outlets.

Press Release Archives:
2016 | 2017 | 2018

Rugged antenna covers multiple popular frequency bands in a single product

Southwest Antennas Releases New Rugged Tri-Band Omni-Directional Antennas for L, S, and C Band Communication - RF CafeSan Diego, California, February 16, 2018 - Southwest Antennas, an industry leader in rugged RF / Microwave antenna and accessory products, has released a new line of tri-band antenna solutions designed to cover several popular sub-bands across the L, S, and C Bands.

These omni-directional antennas are tuned for high performance operation in the following frequencies:

·         1.70 - 1.85 GHz

·         2.2 - 2.5 GHz

·         4.4 - 5.0 GHz

For users who expect to utilize these bands or deploy multi-band radio systems, tri-band antennas can reduce the amount of kit required for deployment, helping to reduce carry weight, overall cost, and system complexity. These antennas are ideal for use with body-worn tactical radio systems, mobile robotics platforms and control systems, MIMO / MANET mesh radio systems, urban area mesh network deployments, broadcast video systems, and more.

The new tri-band antennas are designed to withstand deployments in harsh operating environments around the world, with rugged construction and a matte black finish with black chrome RF connectors for low-visibility operations.

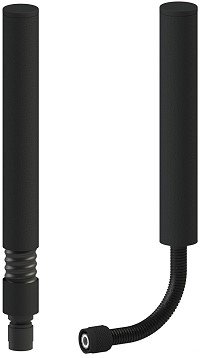

Two antenna base options are available:

1.       Ultra-Flex weatherproof sealed spring base, which allows the antenna to bend and flex upon impact and minimize risk of damage to mated RF connectors.

2.       Integrated RF coaxial gooseneck, which can bend and hold the antenna in non-vertical positions.

To improve antenna performance and operator usability, these antennas feature rugged cylindrical fiberglass radomes. The cylinder shape provides the antenna additional strength and eliminating issues where “paddle” shaped antennas can’t lie flat. This mechanical design coupled with proprietary antenna tuning technique ensures excellent performance and antenna efficiency across the three bands.

These new antennas are available in the following base and RF connector choices:

Part # 1001-194: Tri-Band Omni Antenna, Half Wave Dipole, 1.7 - 1.85 GHz, 2.2 - 2.5 GHz, 4.4 - 5.0 GHz, 2.7 dBi Peak Gain, Ultra-Flex Sealed Spring Base, TNC(m) RF Connector

Part # 1001-198: Tri-Band Omni Antenna, Half Wave Dipole, 1.7 - 1.85 GHz, 2.2 - 2.5 GHz, 4.4 - 5.0 GHz, 2.7 dBi Peak Gain, Ultra-Flex Sealed Spring Base, SMA(m) RF Connector

Part # 1001-181: Tri-Band Omni Antenna, Half Wave Dipole, 1.7 - 1.85 GHz, 2.2 - 2.5 GHz, 4.4 - 5.0 GHz, 2.7 dBi Peak Gain, Integrated RF Gooseneck, TNC(m) RF Connector

Part # 1001-182: Tri-Band Omni Antenna, Half Wave Dipole, 1.7 - 1.85 GHz, 2.2 - 2.5 GHz, 4.4 - 5.0 GHz, 2.7 dBi Peak Gain, Integrated RF Gooseneck, SMA(m) RF Connector

Park # 1001-183: Tri-Band Omni Antenna, Half Wave Dipole, 1.7 - 1.85 GHz, 2.2 - 2.5 GHz, 4.4 - 5.0 GHz, 2.7 dBi Peak Gain, Integrated RF Gooseneck, Type-N(m) RF Connector

Other RF connector options are also available, including Type-N(m), TNC(m), and Reverse Polarity options. Contact Southwest Antennas to discuss your connector requirements.

These products are available now from Southwest Antennas, authorized sales representatives, and distributors.

About Southwest Antennas

Southwest Antennas specializes in the design and manufacture of rugged, high-performance RF and Microwave antennas, accessory products, and customized antenna solutions built for today's demanding communication environments. Founded in 2005 and headquartered in San Diego, California, Southwest Antennas offers over 1,000 standard products for broadcast video, military / defense, law enforcement, homeland security, surveillance, aerospace, oil and gas, and M2M markets.

For more about Southwest Antennas, visit their website at http://www.southwestantennas.com, or e-mail sales@southwestantennas.com.

Contacts

Adam Krumbein
Marketing Director
Southwest Antennas
8145 Ronson Rd., STE B
San Diego, CA  92111
Phone: (858) 277-3300
Web: www.southwestantennas.com





Posted February 21, 2018
