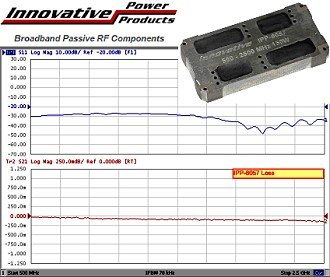

Innovative Power Products introduces their new model IPP-8057, a 150 watt, 33 dB, Surface Mount Dual Directional Coupler that operates from 500 – 2500 MHz.

The IPP-8057 is a broadband design which provides separate coupled ports for both forward and reflected signals with internal terminations. This unique coupler is produced in a Surface Mount (SMD) package size of 0.500(W) x 1.000(L) x 0.139(H) inches and was designed to reduce the size, weight and cost of traditional connectorized couplers.

Insertion Loss is less than 0.25 dB, main line VSWR is less than 1.25:1, coupled flatness is ±1.0 dB and Directivity is greater than 20 dB making these couplers ideal for many commercial and military applications.

Click here to view Typical Test Data for IPP-8057.

Click here to view the PDF Outline Drawing for IPP-8057.



IPP also offers 500 – 2500 MHz, 90° Couplers, 2-Way & 4-Way Combiners/Dividers and higher power Dual Directional Couplers up to 500 Watts.

Part Number

Coupler Type

Power (Watts)

Nominal Coupling (dB)

Package / Connector Type

IPP-7017

90 Degree

100

-

SMD Package

IPP-2334 90 Degree 150 - Drop-In Package
IPP-2335 90 Degree  200 - Drop-In Package
IPP-1100 2-Way Combiner  200 - N / SMA Connectors
IPP-1101 4-Way Combiner  200 - SMA Connectors
IPP-8041 Dual Directional 200 36 SMD
IPP-3026 Dual Directional 200 40 Drop-In Package
IPP-3071 Dual Directional 200 40 SMA Connectors
IPP-3068  Dual Directional 200 40 N / SMA Connectors
IPP-3146 Dual Directional 200  40 N / SMA Connectors

IPP is a designer and manufacturer for applications in the RF and Microwave industries, and offers a variety of broadband, high power couplers, combiners, RF power resistors and terminations operating up to 12 GHz. Our RF Resistors, Terminations and 90 degree Drop-in Hybrid Couplers are RoHS compliant.
