MECA Electronics Press Release - June 10, 2010

MECA Electronics Offering Miniature Octave Band Directional Couplers Click to visit the MECA Electronics websiteMECA Electronics CouplersDenville, NJ, MECA Electronics, July 11, 2009, - MECA Electronics offers Miniature Octave Band Directional Couplers, 0.500 – 18.000 GHz.  50 Watt (3 kW peak), SMA-Female directional couplers ideal for space restricted applications where precise monitoring, external leveling, signal mixing or swept transmission and reflection measurements are necessary.

Most models ship from STOCK – 4 weeks and are available in L, S, C, X and Ku bands.  Nominal coupling values of 6, 10, 20, and 30 dB standard. Made in the USA.  36 Month Warranty.



Additional Specs:

http://www.e-MECA.com/rf-directional-coupler/directional-coupler-780.php

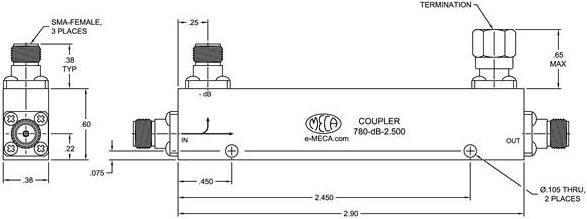

MECA Electronics Miniature Octave Band Directional Couplers Typical Package Outline

Typical Package Outline




MECA ELECTRONICS, INC.
459 East Main Street
Denville, NJ 07834
Toll Free: (866) 444-6322
Phone: (973) 625-0661
Fax: (973) 625-9277
http://www.e-meca.com




Posted 6/14/2010
