Z-Communications, Inc. Press Release - July 20, 2009

Z-Comm Introduces the SFS2400C-LF 2.4 GHz Fixed Frequency Synthesizer

Z-Communications, Inc.Z-Comm SFS2400C-LFSan Diego, CA, July 2009 -- Z-Communications, Inc. announces a new RoHS compliant Fixed Frequency Synthesizer model SFS2400C-LF in S-band. The SFS2400C-LF is a single frequency synthesizer that operates at 2400 MHz. This Synthesizer features a typical phase noise of -109 dBc/Hz @ 10 KHz offset and a typical sideband spurs of -70 dBc.

Z-Comm SFS2400C-LFThe SFS2400C-LF is designed to deliver a typical output power of 6 dBm with a VCO voltage supply of 5 Vdc while drawing 30 mA (typical) and a phase locked loop voltage of 3 Vdc while drawing 11 mA (typical) over the temperature range of -40º to 85º C. This Fixed Frequency Synthesizer features typical 2nd harmonic suppression of -10 dBc and comes in Z-Comm’s industry standard PLL-V12C package measuring 0.60 in. x 0.60 in. x 0.22 in. It is available in tape and reel packaging for production requirements. The SFS2400C-LF is also ideal for automated surface mount assembly and reflow.

SFS2400C-LF is well suited for satellite communication and fixed wireless applications that require low phase noise performance. Additional specifications for this product can be found on-line at http://www.zcomm.com/webstore/ProductInfo.aspx?productid=SFS2400C-LF

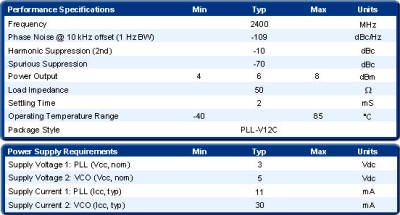

Z-Comm SFS2400C-LF
For further information on this model or any other product from Z-Communications, Inc. please contact our Applications department via e-mail at applications@zcomm.com or call us at 858-621-2700.

Part Number:
SFS2400C-LF

Delivery: Stock - 6 weeks
Contact: Z-Communications, Inc.
Tel: 858-621-2700
Fax: 858-621-2722
Email Technical Support – applications@zcomm.com
Email Sales: sales@zcomm.com
URL: http://www.zcomm.com


For further information on this model or any other product from Z-Communications, Inc. please contact our Applications department via e-mail at applications@zcomm.com or call us at 858-621-2700.

RoHS logoAbout Z-Communications, Inc.


Z-Communications, Inc. is a pioneer in developing Voltage Controlled Oscillators (VCO) and Phase Locked Loop (PLL) synthesizers for the commercial marketplace since 1987 and headquartered in 9939 Via Pasar, San Diego, CA 92126.

With devoted customers, Z-Communications, Inc. serves wireless and communication industries by providing the most effective and competitively priced RF/microwave components, as well as custom component designed to meet customer specific needs. Our sophisticated automated manufacturing facility, located in the US at our headquarters in San Diego guarantees a high level of repeatability, reproducibility and control. For more information please visit us at

www.zcomm.com or contact our sales department.





Posted  7/20/2009
