Z-Communications, Inc. Press Release - 1/26/2009

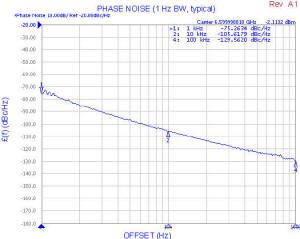

Z-Comm Introduces the CRO6600Z Ultra Low Phase Noise C-Band VCO Z-Communications, Inc.Z-Comm CRO6000Z phase noiseSAN DIEGO, January 26, 2009: Z-Communications, Inc. announces a new VCO (Voltage-Controlled Oscillator) model CRO6600Z in C-band. The CRO6600Z operates from 6590-6610 MHz with a tuning voltage range of 0.5-4.5 Vdc. This VCO features a typical phase noise of -102 dBc/Hz @ 10 KHz offset and a typical tuning sensitivity of 18 MHz/V.

The CRO6600Z is designed to deliver a typical output power of 3 dBm at 5 Vdc supply while drawing 150 mA (typical, due to the doubler) over the temperature range of 0º to 85º C. This VCO features typical 2nd harmonic suppression of -50 dBc and comes in Z-Comm's industry standard VCO-24H package measuring 0.866 in. x 0.630 in. x 0.22 in. It is available in tape and reel packaging for production requirements. The CRO6600Z is also ideal for automated surface mount assembly and reflow.


Z-Comm CRO6600Z


CRO6600Z is well suited for microwave radio and satellite communication applications that require superior 2nd harmonic suppression and ultra low phase noise performance. Additional specifications for this product can be found on-line at
http://www.zcomm.com/webstore/ProductInfo.aspx?productid=CRO6600Z .

For further information on this model or any other product from Z-Communications, Inc. please contact our Applications department via e-mail at applications@zcomm.com or call us at 858-621-2700.

Part Number: CRO6600Z
Delivery: Stock - 6 weeks
Contact: Z-Communications, Inc.
Tel: 858-621-2700
Fax: 858-621-2722
Email Technical Support – applications@zcomm.com
Email Sales: sales@zcomm.com
URL: http://www.zcomm.com

For further information on this model or any other product from Z-Communications, Inc. please contact our Applications department via e-mail at applications@zcomm.com or call us at 858-621-2700.

RoHS logoAbout Z-Communications, Inc.


Z-Communications, Inc. is a pioneer in developing Voltage Controlled Oscillators (VCO) and Phase Locked Loop (PLL) synthesizers for the commercial marketplace since 1987 and headquartered in 9939 Via Pasar, San Diego, CA 92126.

With devoted customers, Z-Communications, Inc. serves wireless and communication industries by providing the most effective and competitively priced RF/microwave components, as well as custom component designed to meet customer specific needs. Our sophisticated automated manufacturing facility, located in the US at our headquarters in San Diego guarantees a high level of repeatability, reproducibility and control. For more information please visit us at

www.zcomm.com or contact our sales department.

Posted 1/23/2009
